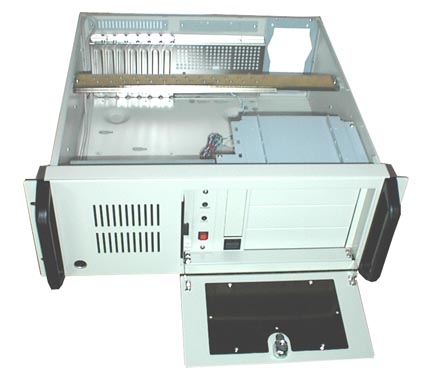

SH-8150 |
||
|
Features |
||
| *Aluminum slides and handles for SH-8150A. | *Plastic slides and handes for SH-8150B. | |
| *Lockable front door for security and dust-proof operation. | ||
|
*Front cooling fan with removable air filter(flow in), another fan at rear for power supply (flow out). |
||
| *Keyboard connectors available on both front and rear panel. | ||
| *The height-adjustable hold-down clamp protects plug-in cards from vibration. | ||
| *Exchange 8+4 and 14 slot rear panel for AT/BP model.(12 slot rear panel is optional) | ||
| *ATX rear panel for ATX model. | ||
|
Specification |
||
| 1.2 mm SECC heavy-duty steel electroplated for chassis. | ||
| 2 mm SECC heavy-duty steel electroplated for front panel. | ||
| For 3 x 5.25"FDD & 1 x 3.5"FDD & 1 x 3.5"HDD. | ||
| 1x12cm cooling fan. | ||
| Speaker: 8 Ohm,0.4W 1.5". | ||
| Dimensions | ||
| W.483mm x D.450mm x H.177mm | ||
| N.W. 13 KGS | ||
| G.W. 15 KGS | ||
| CUFT. 3.3 | ||
| Optional Power Supply | ||
| SH-PS2: 250W ~ 600W AT/ATX AC/DC input | ||
| SH-PSR1: 250~400W Hot-Swap Redundant Power Supply | ||
|
Order information |
||
| SH-8150A-AT | SH-8150B-AT | |
| SH-8150A-AT-R1 | SH-8150B-AT-R1 | |
| SH-8150A-AT-R1/50 | SH-8150B-AT-R1/50 | |
| SH-8150A-ATX | SH-8150B-ATX | |
| SH-8150A-ATX-R1 | SH-8150B-ATX-R1 | |
| SH-8150A-ATX-R1/50 | SH-8150B-ATX-R1/50 | |
