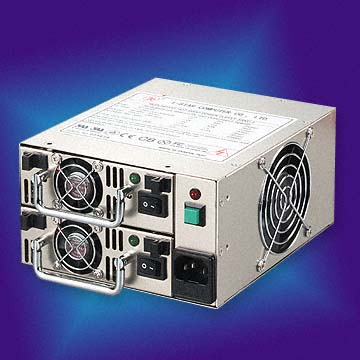

SH-PSR1 AT/ATX Switching Power Supply |
|
|
Specification |
|
| *Auto 115/230V AC input switching power supply | |
| *Thermal Fan-speed Control | |
| *PFC (optional) | |
| *With 80*80*25mm Cooling fan | |
| *AT TYPE 250W~400W | |
| *ATX TYPE 250W~400W | |
| *Dimensions:
W.150
mm x D.174 mm xH.86mm(250,300W) Dimensions: W.150 mm x D.200 mm xH.86mm(400W) |
|
|
PS2 SIZE AC INPUT SWITCHING POWER SUPPLY |
||||||||||
| Model |
Output Voltage |
PFC | SAFETY APPROVAL | note | ||||||
| +3.3 | +5V | +12V | -5V | -12V | 5VSB | MTBF | ||||
| ATX-250 | 16A | 25A | 10A | 0.3A | 0.8A | 0.75A | 100000hrs | optional | UL,cUL,TUV,CE | PRT |
| 150W | ||||||||||
| ATX-300 | 16A | 30A | 12A | 0.5A | 0.8A | 1.5A (peak 2A) |
100000hrs | optional | UL,cUL,TUV,NENKO,CB,CE | ISTAR |
| ATX-400 | 16A | 35A | 18A | 0.5A | 0.8A | 1.5A (peak 2A) |
100000hrs | optional | UL,cUL,TUV,NENKO,CB,CE | ISTAR |
