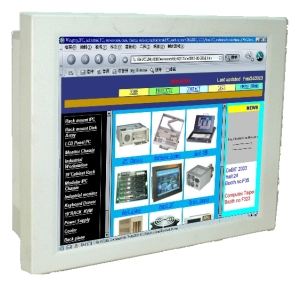

SH-5940 (FSB 533 MHz) |
|
|
General Specifications |
|
| Processor: Socket 478 for Intel® Pentium® 4 (FSB 533 MHz) supports Hyper Threading Technology(3.0) |
|
| Memory: - Type: DDR266/333 ( PC2100/2700) 184 pin (2.5v) - 2 x DIMM - Max capacity: Up to 2 GB |
|
| HDD: One IDE interface, 3.5" type | |
| LAN: 100 Base Tx Ethernet interface | |
| FDD: One slim-size 3.5"FDD(optional) | |
| CD ROM: One slim- size CD-ROM(optional) | |
| Touchscreen:
Resistive
(optional) Surface Hardness：3H Optical Clarity：80 % Operating Temperature：0°C ~ 50°C Endurance Test：Over 1 million strikes Operating Voltage：DC 5 ~ 12 V Resistance：200W ~ 900W Linearity：< 1.5% Faceplate Surface：Anti-glare coating Operation Pressure：35g~60g Storage Temperature：-20°C ~ 70°C Message Noise：5 m sec ~ 15 m sec Operating Current：5mA ~ 25mA Isolation Resistance：DC25V 20MW |
|
| Internal
I/O Connectors - 1 x FDD - 2 x UDMA ATA 100/66 Bus Master IDE - 2 x USB 2.0 - 2 x cooling fan pin headers - CD/AUX in headers - 1 x WOL header Rear Panel - 2 x USB 2.0 ports - 1 x LPT - 1 x COM port - 1 x VGA port - 1 x RJ45 port - Audio (1 x Line-in / 1 x Line-out / 1 x MIC) connector - PS/2 Keyboard/Mouse connector - 1 x Game/Midi port |
|
| SLOT: 1xPCI expansion slot support 33MHz & PCI 2.2 compliant | |
| OTHER: - IDE #1-#4, SCSI, LS120, ZIP, CD-ROM and USB bootable. - Suspend to RAM (STR) - Supports USB KB / MS wake up from S3 - ABS+PC front panel |
|
|
Power Supply |
|
| DC Output rating: 200 W | |
| Input voltage: 100~127/200~240VAC @ 47/63 Hz | |
| Output voltage: +5 V @ 16 A, +12 V @ 5 A,+3.3V 7A,-5V 0.2A,-12V 0.3A,+5VSB 0.8A (3.3V & 5V combine load 83W) | |
| MTBF: 100,000 hrs. | |
| Safety: UL/cUL/CB/TÜV/Nemko/FCC/CE approved (PFC Optional) | |
|
LCD Display 15"/17" |
|
| Operating Temperature: 0 - 50° C | |
| LCD MTBF: 50,000 hrs. | |
| Backlight lifetime: 50,000 hrs. | |
| Display type: TFT LCD | |
| Simultaneous mode: Yes | |
| Contrast Ratio: 350:1/400:1 | |
| Viewing angle: 130°/180° | |
| Luminance (cd/m2): 250 nit(500/800/1000/1700 nit optional)/280 nit | |
| Pixel pitch: 0.297 x 0.297 (mm)/0.264 x 0.264 | |
| Max. resolution: 1024 x 768/1280 x1024 | |
|
Environmental Specifications |
|
| Plastics front panel and chassis | |
| Heavy-duty steel electroplated for inside chassis. | |
| Operating temperature: 0 ~ 50° C (32 ~ 113° F) | |
| Front Panel protection: NEMA 4 (IP 56)/ NEMA 12 (IP 52) at front panel | |
| Dimensions | |
| W.420mm x D.330mm x H.110mm | |
| N.W. 7.5 KGS | |
| G.W. 9 KGS | |
| CUFT. 1.5 | |
|
