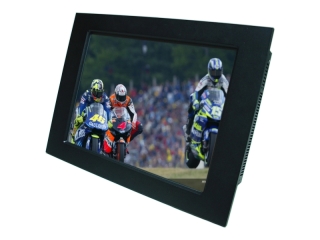

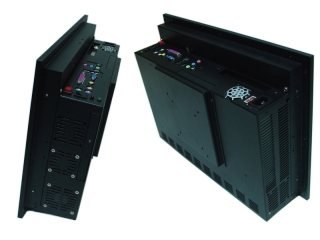

SH-5860

General Specifications

MB:
option
(1) MB-GM45

Mobile Socket P support Intel Core 2 Duo Mobile Penryn/Core 2 Extreme / Celeron M (575/585) CPU
2 x 200pin DDR2 800/667 SO-DIMM up to 4GB
Dual view support via 24bit LVDS/VGA/HDMI
1 x PCI slot and 1 x Mini PCI-Ex1 slot
1 x LPC interface for extra 4 COM ports add-on card expand
Dual Gigabit LAN, 2 x COM, 8 x USB 2.0, 2 x SATAII,
1 x Printer port, 5.1CH HD Audio integrated


(2) MB-QM67

2nd Generation Intel® Core™i7 / i5 / Celeron® QC / DC processors
2 x DDR3 DIMM, Max. 8GB memory
Supports CRT, DVI, LVDS and HDMI
Dual Gigabit Ethernet
8x USB 2.,0, 2x USB 3.0, 4x COM, 4x SATA II, 2x SATA III
1 x PCI-E(x16), 1x Mini PCI-E(x1)
WatchDog timer, Digital I/O



(3) MB-I945GSE

Intel Mobile Atom N270 (1.6GHz) processor onboard
6 x COM (five for RS232; one for RS232/422/485)
One DDR2 533 SO-DIMM up to 2GB
Dual View support via LVDS and VGA
24bit Dual channel LVDS
Mini PCI-E and PCI expansion slot
Dual Gigabit LAN, 2 x SATA, 6 x USB 2.0, 1 x Printer port
5.1CH HD Audio integrated



(3) MB-D525_NM10

Intel Atom D525 (Dual Core1.8 GHz) processor onboard
Support DDR3 800MHz Long-DIMM x 2 Max. up to 4GB
6 x COM w/ 5V or 12V power switch by jumper select
Dual View support via VGA and 24bit LVDS
PCI & Mini PCI-E expansion slot
Dual Gigabit LAN, 6 x COM, 2 x SATAII, 7 x USB 2.0,
1 x Printer port, 5.1CH HD Audio integrated

HDD: One  2.5" type
CD ROM: One slim- size DVD-ROM(optional)
Touchscreen: Resistive (optional)
Surface Hardness
3H
Optical Clarity
80 %
Operating Temperature
0°C ~ 50°C
Endurance Test
Over 1 million strikes
Operating Voltage
DC 5 ~ 12 V
Resistance
200W ~ 900W
Linearity
< 1.5%
Faceplate Surface
Anti-glare coating
Operation Pressure
35g~60g
Storage Temperature
-20°C ~ 70°C
Message Noise
5 m sec ~ 15 m sec
Operating Current
5mA ~ 25mA
Isolation Resistance
DC25V 20MW

Power Supply

DC Output rating: 300 W
Input voltage: 100~127/200~240VAC  @ 47/63 Hz
Output voltage: +5V, +12V,+3.3V,-5V,-12V,+5VSB
MTBF: 100,000 hrs.
Safety: UL/cUL/CB/TÜV/Nemko/FCC/CE approved (PFC Optional)

LCD Display

20.1" TFT LCD Display
-Operating Temperature: 0 - 50° C
-Backlight lifetime: 50,000 hrs.
-Display type: TFT LCD
-Contrast Ratio: 700:1
-Viewing angle: 170°
-Luminance (cd/m2): 250 nit
-Pixel pitch: 0.255 x 0.255 (mm)
-Panel resolution: 1600 x 1200
-Display colors:16.7M

Environmental Specifications

8 mm Aluminum front panel
Heavy-duty steel electroplated for chassis.
Operating temperature: 0 ~ 50° C (32 ~ 113° F)
Front Panel protection: IP 65 at front panel
Dimensions
W.500mm x H.400mm x D.102mm(110mm with front panel)
N.W. 13 KGS
G.W. 15 KGS
CUFT. 3.0

Download

Touch-screen Driver   ----->Download
MB Driver  ---->Download

User menu  ---->Download



The specifiction and pictures are subject to change without notice.
