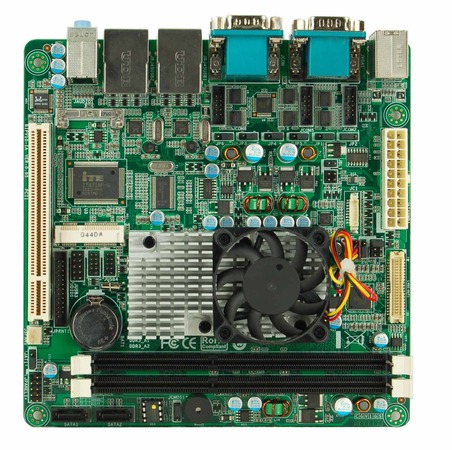

MB-D525/NM10
Specifications:
Intel Atom D525 (Dual Core1.8 GHz) processor onboard
Support DDR3 800MHz Long-DIMM x 2 Max. up to 4GB
6 x COM w/ 5V or 12V power switch by jumper select
Dual View support via VGA and 24bit LVDS
PCI & Mini PCI-E expansion slot
Dual Gigabit LAN, 6 x COM, 2 x SATAII, 7 x USB 2.0,
1 x Printer port, 5.1CH HD Audio integrated
Chipset:
Intel D525 / NM10
CPU SUPPORT
Intel Atom D525 (Dual core, 1.8 GHz) processor onboard
MEMORY
Max. Supports up to 4GB Memory
2 x DDR3 DIMM Memory Slot
EXPANSION SLOT
1 x PCI
1 x Mini-PCIe Slot
GRAPHICS
Intel® GMA 3150 Graphic Engine
AUDIO
Realtek ALC662 High Definition Audio Codec
GbE
2 x Realtek RTL8111E - Integrated 10/100/1000 Transceiver
SUPER I/O CHIP
ITE IT8718F (128pin)
REAR I/O
1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 2.0
3 x RS-232
1 x D-Sub
2 x GbE
2 x Audio jack (Line out / Mic)
INTERNAL I/O
2 x SATA Connector
3 x Serial Header
1 x LVDS Connector
1 x Parallel Header
1 x Front Panel Header
1 x DIO(GPIO) Header
1 x ATX Power Connector
OS SUPPORT
Support Windows 7 / XP / XPe .....
Support Linux
DIMENSION
170mm x 170mm ( W x L )
ATATX
AT / ATX selection |
