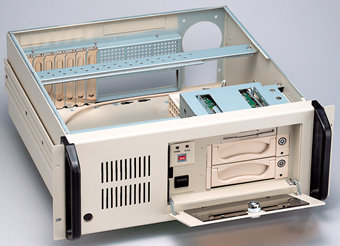

SH-8200 |
|
|
Features |
|
| *Steel front panel and plastic handles. | |
| *Lockable front door for security and dust-proof operation. | |
|
*Front cooling fan with removable air filter(flow in), another fan at rear for power supply (flow out). |
|
| *Keyboard connectors available on both front and rear panel. | |
| *The height-adjustable hold-down clamp protects plug-in cards from vibration. | |
| *Exchange 8+4 and 14 slot rear panel (12 slot rear panel is optional) for AT model. | |
| *ATX rear panel for ATX model. | |
|
Specification |
|
| 0.05" SECC heavy-duty steel electroplated for chassis. | |
| 2 mm SECC heavy-duty steel electroplated for front panel. | |
| For 2 x 5.25"FDD & 1 x 3.5"FDD & 3 x 3.5"HDD. | |
| 1x12cm fan. | |
| Speaker: 8 Ohm,0.4W 1.5". | |
|
Dimensions |
|
| W.483mm x D.450mm x H.177mm | |
| N.W. 13 KGS | |
| G.W. 15 KGS | |
| CUFT. 3.3 | |
|
Optional Power Supply |
|
| SH-PS2: 250W ~ 600W AT/ATX AC/DC input | |
| SH-PSR1: 250~400W Hot-Swap Redundant Power Supply | |
|
Order information |
|
| SH-8200-AT | |
| SH-8200-AT-R1 | |
| SH-8200-AT-R1/50 | |
| SH-8200-ATX | |
| SH-8200-ATX-R1 | |
| SH-8200-ATX-R1/50 | |
