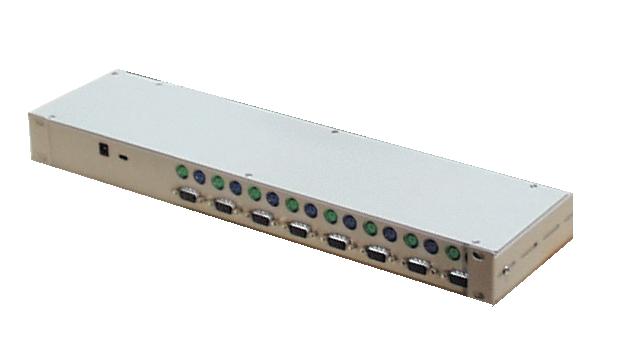

SH-6530

Specification
*Heavy-duty steel electroplated for chassis
*1U KVM Switch 1 or 2 Console  8 Port
*2U KVM Switch 1 or 2 Console 16 Port
*Up to 4,8,16 Keyboard/VGA/Mouse  inputs (4,8,16 PCs)
*Cascade control up to 16,64,256 PCS
*PS/2 and Serial Mouse Emulation Provided for System Bootup
*No software Required-Computer selection Via Pushbuttons, Hot keys, or OSD( On Screen Display)
*Quick View scan mode for monitoring selected computers
*Hot Pluggable-add or remove computer for maintenance without  powering down the switch .
*Scan  interval 3,8,15,30  sec.
*Supports VGA resolution up to 1920 x 1440
Power Supply:
*5V~12V DC input ( includes universal AC input, 9VDC output power adapter.)
Color :
*Available in black and beige. (Colors available for OEM)
Option
*UL-2919 rated 3-in-1 cables set with VGA, keyboard (PS/2), Mouse (PS/2) (1.8M,3M,6M Optional)
Dimensions
KVM-108/KVM208
W.482mm x D.150mm x H.44mm
N.W. 4.5 KGS
G.W. 6 KGS
CUFT. 1.7
KVM-116/KVM216
W.482mm x D.150mm x H.88mm
N.W. 5 KGS
G.W. 6.5 KGS
CUFT. 2.3
Ordering Information:
MODEL CONSOLE COMPUTER PORT OSD CASCADE UNIT
SH-6530-108-C 1 8 NO 64 1U
SH-6530-108D-C 1 8 YES 64 1U
SH-6530-116D-C 1 16 YES 128 2U
SH-6530-208D-C 2 8 YES 64 1U
SH-6530-216D-C 2 16 YES 128 2U

C  =B (Black color), W (Beige color)
