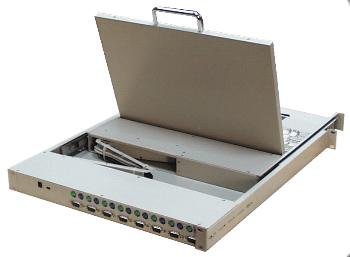

SH-6510/6500 (OEM)

Specification

Heavy-duty steel electroplated for chassis
*Only 1U 4 in 1 Keyboard, Monitor, Mouse, KVM switch Drawer.(SH-6510)
*Only 1U
3 in 1 Keyboard, Monitor, Mouse, Drawer.(SH-6500)
FLAT PANEL:
*15" TFT LCD Panel Resolution 1024x768(Analog VGA Input )
*12.1 TFT LCD Panel Resolution 800x600(optional)
*13.3/14.1 TFT LCD Panel Resolution 1024x768(optional)
*Built-in 5 languages OSD.
*Automatic flat panel shut-off when monitor is in the closed position, or no signal input.
MOUSE:
*Original Logitech®  Touchpad (Microsoft mouse compatible with PS/2 mouse interface)
*Original Logitech®  Trackball (optional)
KEYBOARD:
*105 key ALPS® mechanical key switches  English Keyboard, compatible to IBM PC/AT, PS/2 keyboard, supports Windows function keys (German, French, Chinese, Japanese....optional)
Power Supply:
*12V DC input( includes universal 100~240V AC input,12V DC output power supply adapter)
*(24V/-48V DC input adapter optional)
Cable:
*Three in one VGA, keyboard (PS/2), Mouse (PS/2)  cable set 1.8M 8 set (3M,6M Optional)
Color :
*Available in black and beige. (Colors available for OEM)
KVM switch:
*Up to eight Keyboard/VGA/Mouse inputs (8 PCs)
*Cascade control up to 64 PCs
*PS/2 and Serial Mouse Emulation Provided for System Bootup
*No software Required-Computer selection Via Pushbuttons, Hot keys, or OSD( On Screen Display)
*Quick View scan mode for monitoring selected computers
*Hot Pluggable-add or remove computer for maintenance without powering down the switch.
*Scan interval 3,8,15,30  sec.
Optional
*UL-2919 rated 3-in-1 cables set with VGA, keyboard (PS/2), Mouse (PS/2) (1.8M,3M,6M Optional)
*Touch screen (SH-6500 only)
Dimensions
W.482mm x D.508mm x H.44mm
N.W. 9.5 KGS
G.W. 12 KGS
CUFT. 2.72
Ordering Information:
SH-6510-15-XX-C   Keyboard, 15" TFT, Mouse, 8 Port KVM switch
SH-6500-15-XX-C   Keyboard, 15" TFT, Mouse
XX=US,GR,FR,CH,JP....(Keyboard languages)
C  =B(BLACK), W(BEIGE)
