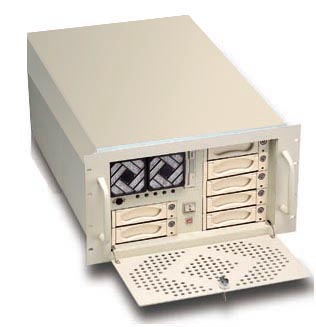

SH-2170L |
|
|
Specification |
|
| *0.05" SECC heavy-duty steel electroplated for chassis | |
| *0.12" aluminum plate for front panel | |
| *Aluminum front panel and handles. | |
| *Lockable front door for security and dust-proof operation. | |
|
*Front two 8 cm cooling fans with removable air filter(flow in), one fan at rear and theother fan at rear for power supply (flow out). |
|
| *Keyboard connectors available on both front and rear panel. | |
| *7 x 5.25" & 1x 3.5" open driver bay | |
| *One Power ON/OFF switch and Reset switch at front panel and five LED indicators | |
| *Speacker: 8 Ohm,0.4W 1.5" | |
| SH-2170L space for: | |
| Baby AT M/B, ISA and PCI/ISA 8 slot BP, ISA and PCI/ISA 12,14 slot BP | |
| PS/2 250W ~ 400W PSU | |
| SH-2170L ATX space for: | |
| ATX M/B | |
| PS/2 250W ~ 400W PSU | |
| SH-2170L-20 space for: | |
| ISA 20 slot BP or PCI/ISA 18,19 slot BP | |
| PS/2 250W ~ 400W PSU | |
| SH-2170L XX-R3 space for: | |
| 300~400W AT OR ATX Hot-Swap Redundant PSU(Horizontal) | |
| Dimensions | |
| W.483mm x D.610mm x H.266mm | |
| N.W. 22 KGS | |
| G.W. 24 KGS | |
| CUFT. 5.9 | |
