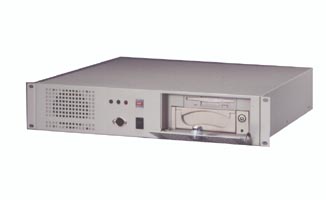

SH-1520 |
|
|
Specification |
|
| *0.05" SECC heavy-duty steel electroplated for chassis | |
| *One high efficiency cooling fan at front side. | |
| *One 5.25" and one 3.5" drive space (open). | |
| *One Power ON/OFF switch and Reset switch at front pane and three LED indicators | |
| *With a 6 slot Backplane (ISA or PCI) | |
| *For fit in any size and any bus type industrial single board (CPU card) of ISA-bus or PICMG-bus | |
| *Allow for plug in any full size or half size add-on-card | |
| *Extra reserve one Keyboard connector, | |
| *Space for 250W~400W PS/2 Power Supply (UL,CSA,TUV,CE) | |
| Dimensions | |
| W.482 mm x D.432 mm x H.88 mm | |
| N.W. 6 KGS | |
| G.W. 8 KGS | |
| CUFT. 2.56 | |
| Optional | |
| SH-BP-2U-6ISA Backplane (6 ISA) | |
| SH-BP-2U-4PCI Backplane (1 PICMG & 4 PCI) | |
| SH-BP-2U-3I2P Backplane (1 PICMG & 3 ISA & 2 PCI) | |
| PS2 250~400W Power Supply | |
