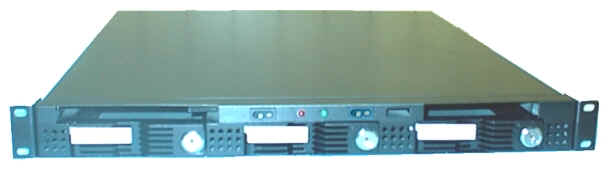

SH-1517 |
|
|
Specification |
|
| *SECC heavy-duty steel electroplated for chassis | |
| *6 pics x4cm cooling fans | |
| *Space for 3 x 1" height hot-swappable SCA/cool-swappable IDE HDD | |
| *One Power ON/OFF switch and Reset switch at front pane | |
| *SH-1517-S:Space for ATX(12"x9.6"), Micro ATX M/B | |
| *SH-1517-L:Space for FULL-ATX(12"x13"), ATX, Micro ATX M/B | |
| *Space for one slim size FDD & one slim size CD_ROM | |
| *Riser Card: for one expansion PCI slot | |
| *Space for 150W~350W ATX 1U Power Supply(UL,CSA,TUV,CE) | |
| *Two LED indicators | |
| *FAN & Temp. alarm Message monitor (Optional) | |
| Dimensions | |
| SH-1517S: Space for ATX(12"x9.6") | |
| W.482 mm x D.505 mm x H.44 mm | |
| N.W. 6 KGS | |
| G.W. 8 KGS | |
| CUFT. 2.3 | |
| SH-1517L: Space for FULL-ATX(12"x13") | |
| W.482 mm x D.605 mm x H.44 mm | |
| N.W. 8 KGS | |
| G.W. 10 KGS | |
| CUFT. 2.8 | |
